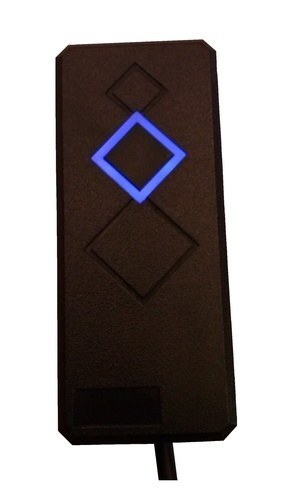

Card reader is a standard Wiegand 26bit or Wiegand 26bit output format and an off-contact high performance reader.
Its main use is as a supplementary reading device for the controller which has the wiegand interface.
It characters with exquisite appearance, convenient installation and stable characteritics.

Specification:
Output Interface: Wiegand26/34
Operating Frequency: 125KHz or 13.56MHz
Reader Card: EM, Mifare Card
Transmitting Distance: WG≤100M,RS485≤1200M
Proximity Range: 3-15cm
Power Supply: DC9 ~ 12V
Static Power Supply: 50 ~ 70mA
Temperature: -25°С – +75°С
Relative Humidity: 10%-90%
Recognition Speed: <=5s
LED: Built-in LED (Double Color LED)
Buzzer:Built-in Loud Speaker
Color: Black
Material: PVC Case Material (Black Resin for Water-Proof Function),With Water-Proof Function
Dimensions: 102x43x16mm
Audiovisual indication: When a registered card is presented to the reader, the red LED flashes green and the beep sounds
